YTM-GN3028
New Products
Two-Way Intercom Voice System

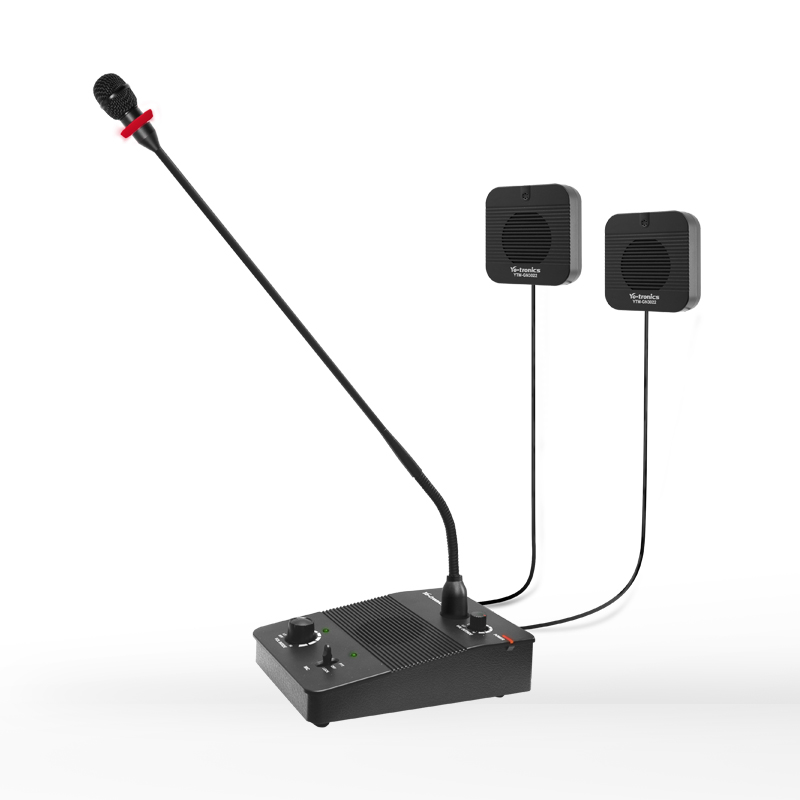

The system includes a main unit with a built-in speaker, an LED-equipped gooseneck microphone and two external speaker stations with built-in condenser microphones. Independent volume controls allow the inside and outside audio levels to be adjusted for different environments.
The system can also be expanded with an optional external loudspeaker and CB microphone, making it suitable for communication between a front counter and a kitchen, warehouse or other back-of-house area.
Features
Clear Two-Way Communication
Provides reliable voice communication between staff and customers across glass partitions, service counters or other physical barriers.
Two External Communication Stations

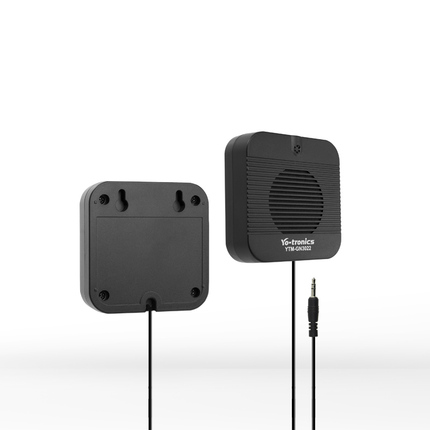

Two compact external speakers with built-in condenser microphones are included, allowing the system to serve multiple customer positions or communication areas.
LED Gooseneck Microphone

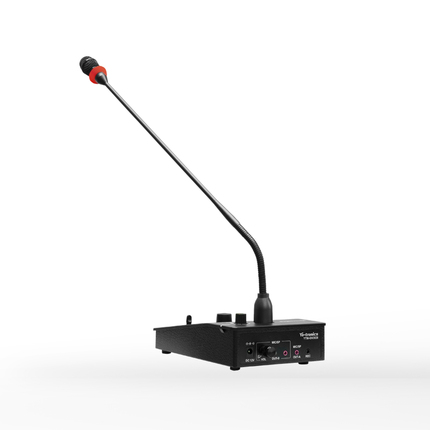

The 480 mm flexible gooseneck microphone can be positioned close to the operator for clear and focused voice pickup. Its unidirectional pickup pattern helps reduce surrounding noise.
Independent Volume Controls
Separate inside and outside volume controls allow the audio level to be adjusted according to the installation environment.
Push-to-Talk and Lock Modes
Use PTT mode for controlled communication or Lock mode for continuous hands-free operation.
Built-In Main Unit Speaker
The main unit features an integrated 3 W speaker, providing clear audio monitoring for the operator without requiring an additional desktop speaker.
Expandable System Configuration
OUT-A and OUT-B connections support external speaker stations. The system also provides a microphone/speaker terminal and recording output.
Optional Kitchen or Back-Room Communication

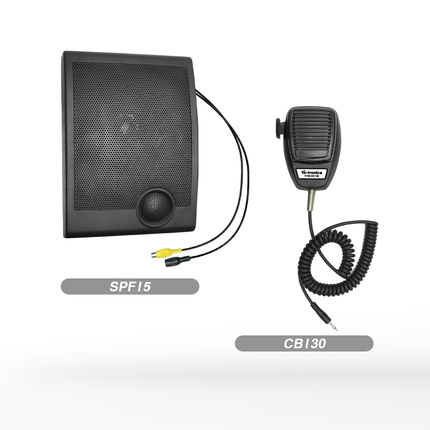

An optional wall-mounted loudspeaker and handheld CB microphone can be connected for communication between the service counter and kitchen, warehouse or staff area.
Specification
| Inside Speaker Power | 8Ω , 3W |
| Outside Speaker Power | 8Ω , 3W |
| Base Sensitivity | 50dB |
| Frequency Response | 50Hz-12kHz |
| Main Unit Weight | 560 g |
| External Speaker Weight | 120 g each |
| External Microphone Sensitivity | −44 ±3 dB at 1 kHz (0 dB = 1 V/Pa) |
| Power Supply | DC 12 V / 1000 mA |
Safety/Quality Approvals
Other 1
YTM-GN3028 Standard Package Contents
Main intercom unit with built-in speaker × 1
480 mm LED gooseneck microphone × 1
External speaker with built-in condenser microphone × 2
DC 12 V power adapter × 1
